Sharpless 2-1 is a faint diffuse nebula located in the constellation Scorpius. Both red emission and blue reflection nebulosity are present. The brightest star (toward the lower left in the image above) is magnitude 2.9 pi Scorpii, a B-class star and a major source of illumination for the nebula (Sharpless, 1959).

I imaged the region from Rusty's RV (near Rodeo, NM) using both my CCD and DSLR. The CCD was mounted to a 100mm Canon lens while the DSLR was mounted to a 200mm Canon f/2 lens. I used the CCD to collect Ha data, while the DSLR collected color data. In retrospect, I wish I had brought my color filters and collected some blue and/or green data with the CCD since there is considerable but faint reflection nebulosity in the area. Instead, I did my best to extract reflection nebulosity detail from the blue and green channels of the DSLR images.

Ha and color data was collected over the course of four nights.

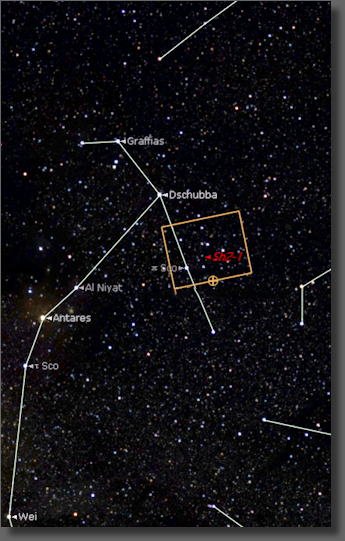

The field of view used to acquire the image is shown in the Imaging Details box and in the inset to the right. The image at top is slightly cropped and reduced in size (to roughly 25% scale). Clicking the image above will open up a larger, version.

Imaging Details
Imaging Dates	April 25-28, 2022
Imaging Location	Rusty's RV (+31.9, -109.0)
Constellation	Scorpius
Imaging Oprics	Canon 200mm f/2.8 lrns
Imaging Camera	Atik 460EX, Modified Canon T2i (DSLR)
Imaging Filter(s)	Ha (CCD only)
Exposures	Color (DSLR) - 180 sec, Narrow Band (CCD) - 300 sec
Guiding	Lodestar X2, PhD Guiding
Image Processing	Sub alignment and initial stretches were performed using Nebulosity; Photoshop CS5 was used to process the stacked subs. Topaz DeNoise AI was used to reduce noise and sharpen the image.
