Simeis 147 Supernova Remnant (imaged from Las Cruces, NM)

Simeis 147 Supernova Remnant Map of region near Simeis 147



Object Information                                            Imaging Details

Simeis147 is a supernova remnant (SNR) in the constellation Taurus. It lies about 3000 light-years distant. It's close to the star Elnath. Also known as the Spaghetti Nebula, the SNR is thought to have a reapidly rotating neutron star in its core.

The red color is from hydrogen that has become excited by absorbing energy resulting in an electron moving into a higher orbital. When the electron drops back down to a lower energy state, a photon of light is emitted. Red is a dominant hydrogen emission color.

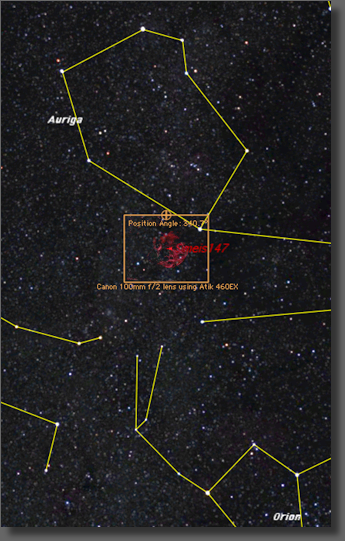

This object was imaged from my front yard in light-polluted Las Cruces, NM. The map shows the SNR to scale.

Clicking the above image will bring up a higher resolution image.

Telescope:

Canon 100mm and 200mm lenses

Camera:
Canon T2i (200mm) and Atik 460 (100mm)
Filter(s):
7nm Ha filter on Atik
Misc. Optics:

Exposures:
12 x 10 minutes (Atik); 22 x 1 minute (Canon)
Guiding:
Thru ED-80 with a Lodestar X2.
Processing:
Images aligned and stacked in Nebulosity 4. Levels applied in Nebulosity 4. Additional processing with Photoshop CS5.
